Cromemco System 120 Case with Z80 Cromix System

{Description}A Cromemco System 120 case with 256Kb ZPU based floppy disk system.
Boot Disks for Z80 Cromix and CDOS provided.
{Condition}Working.

Last used June 2020.

All power supply capacitors were reformed in 2019 without problems.

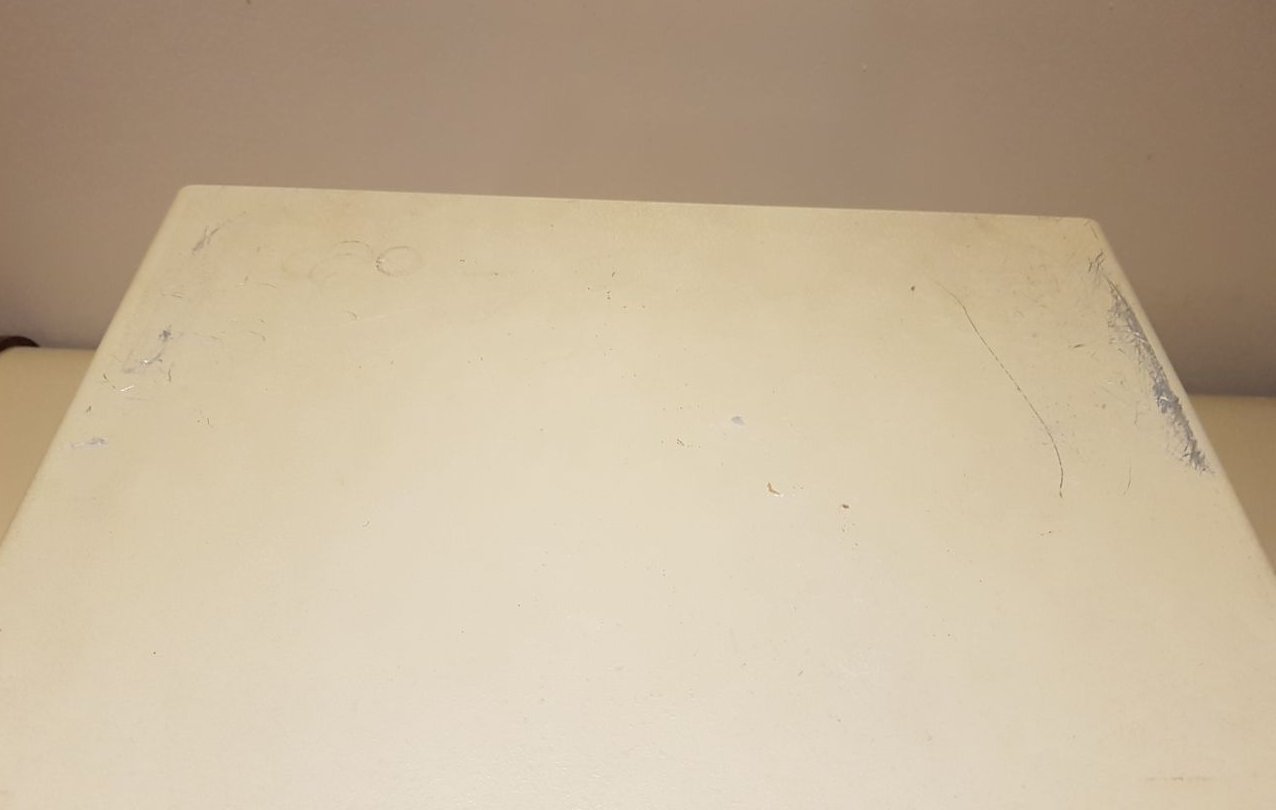

Top rear of case badly scratched. Needs a repaint.

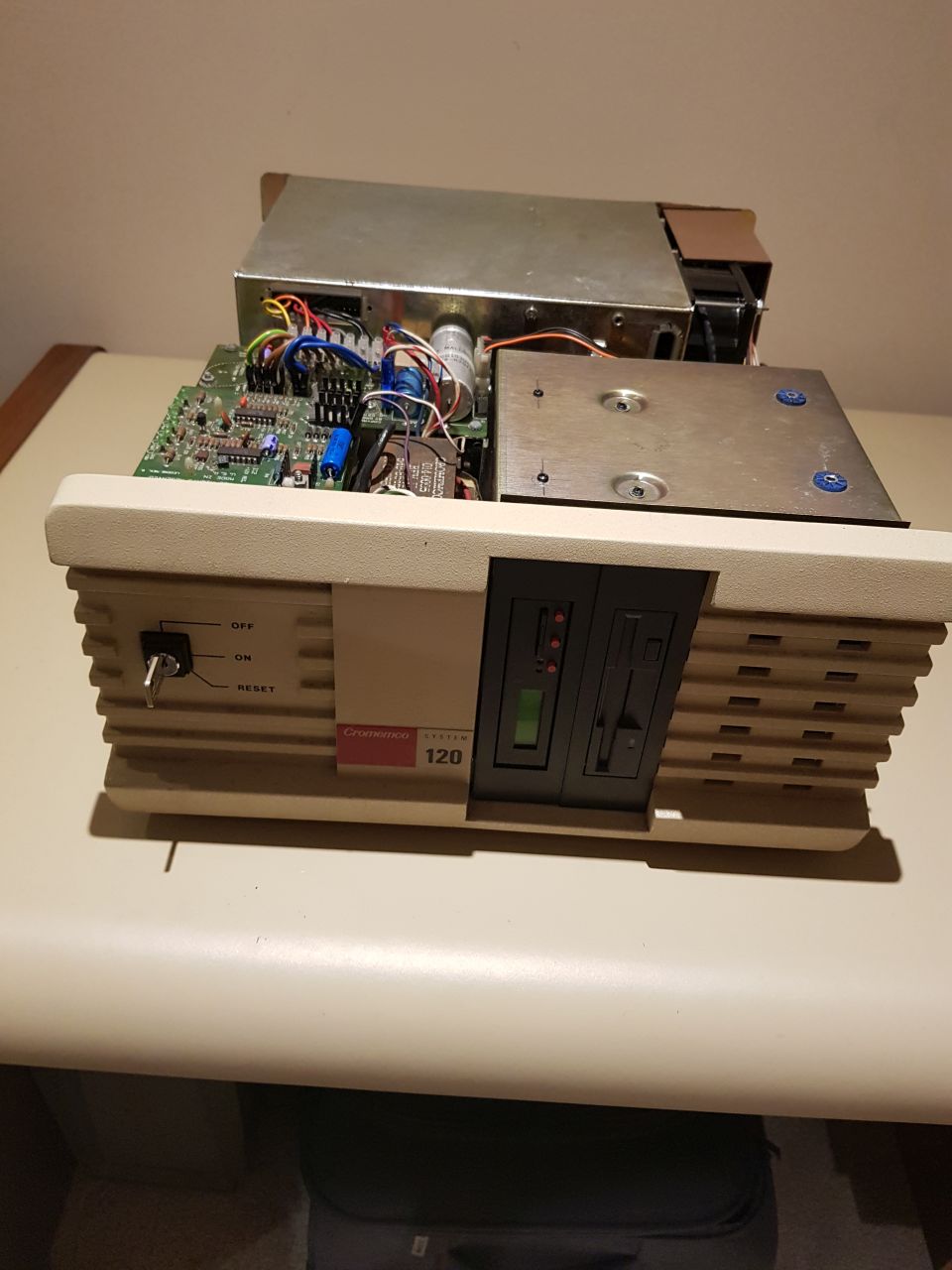

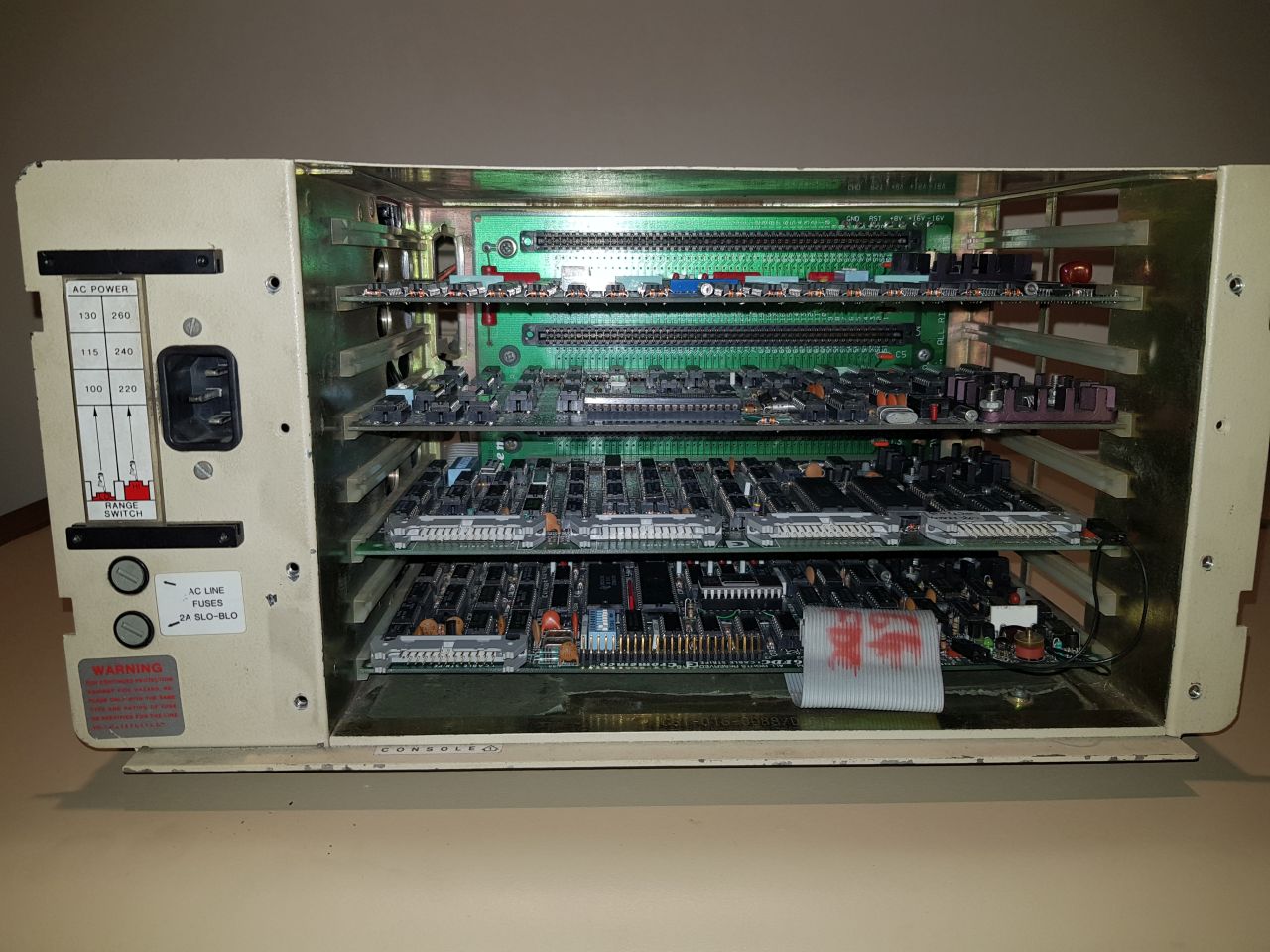

{System Contains}From top down:

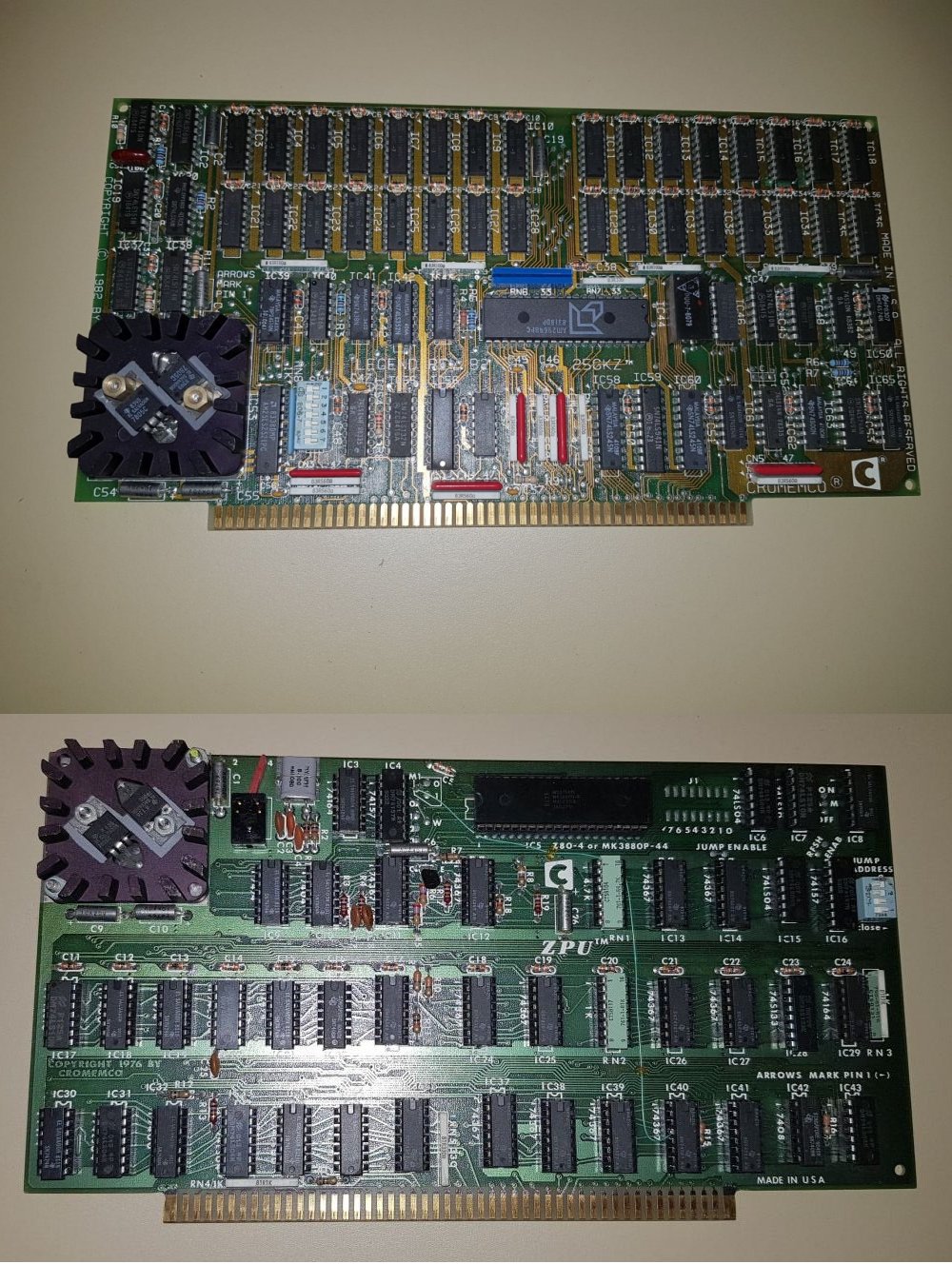

Cromemco 256Kz
Cromemco ZPU

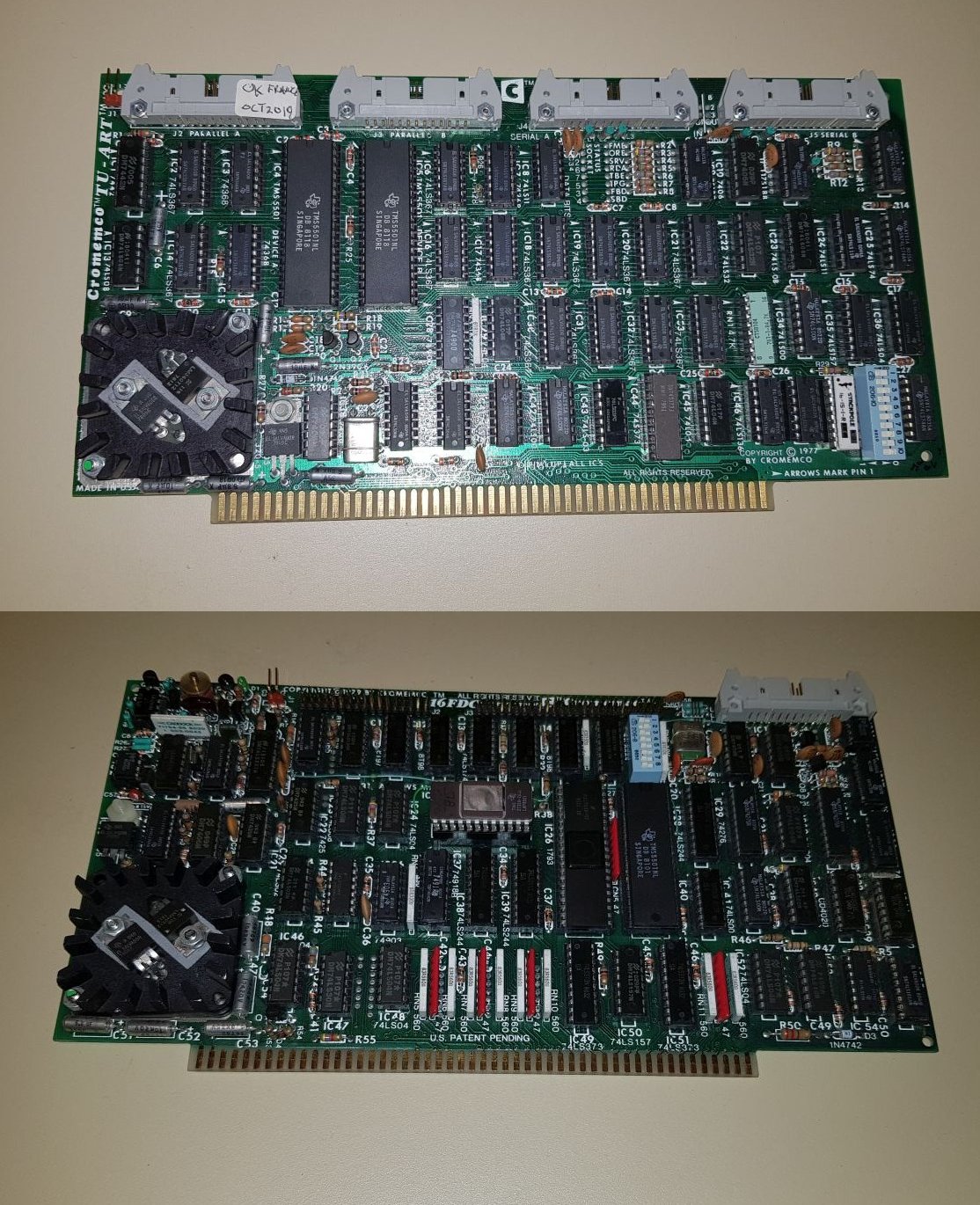

Cromemco TU-ART
Cromemco 16FDC with RDOS 2.52.

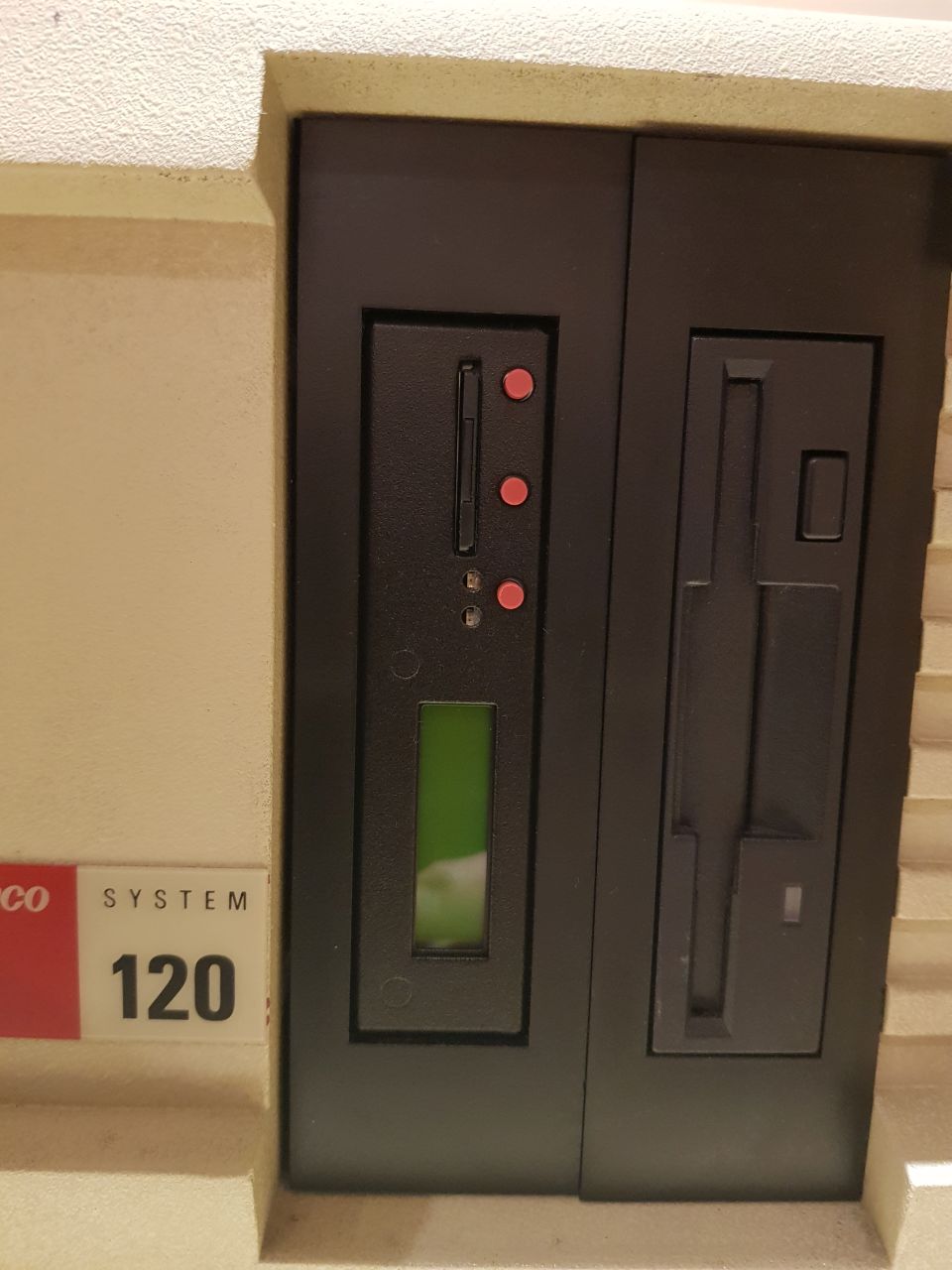

Drive bay (left): SD card floppy disk drive emulator - SD FB - HXC Rev F (new 2020 £82 - https://lotharek.pl/productdetail.php?id=27
Drive bay (right): Teac 3.5 floppy disk drive. Acts as 1.2Mb 8" drive.
{Notes}
Drive bay has a floppy disk emulator (https://lotharek.pl/productdetail.php?id=27).
This acts as drives A and C with the 3.5 floppy being drive B.
You can boot from the emulator or the floppy.
There is no hard disk drive.
Boot floppys and SD cards for CDOS and Cromix are included.

The TU-ART has a quirk in that it needs e.g. "mode tty2 b 9600" set in order for it to init under Cromix.


{Images Used} Right-click and choose "Save Link As" to save full-size image.
